Vertical Glass Drilling and Milling Machine
| Packaging: | Plastic film and wooden pallet for necessary parts. |
|---|---|
| Productivity: | 600-700 pieces per day |
| Brand: | WEILI & WGM |
| Transportation: | Ocean |
| Place of Origin: | Shandong, China |
| Supply Ability: | 10 sets per month |
| Certificate: | ISO |
| HS Code: | 846490 |
| Port: | Qingdao Port |
Basic Info
Model No.: GC-LDM-III2030
Product Description
CNC Vertical Glass Drilling and Milling Machine
GC-LDM-III2030 CNC Vertical Glass Drilling and Milling Machine is a vertical glass-working machine; with all the main part protectively covered. The structure is convenient to load and unload the machine and occupied less area. It also can reduce the obstruct and easy to process the glass sheet, or even advantaged to the coolant water system.This CNC Vertical Glass Drilling and Milling Machine is suitable to process structural glass (Frameless door, glass curtain wall etc.)
Feature:
The flexibility of the control system of CNC Vertical Drilling and Milling Machine can meet the requirement of different products, the whole work is finished automatically. The function including:
*Drilling by two opposite spindles;
* Milling by single router;
*Arrising
Our CNC Vertical Glass Drilling and Milling Machine include Glass fixer and Y, V-axis,Tool Store,Electro-spindle,
Type of tools,Numerical control,CAD/CAM software,Electric system,Coolant system and Clamp.
Technical parameters
| Max.glass | 2000*3000mm 2500*4200mm 3000*6000mm | Machine size | 9300*2500*3700 11700*2500*4200mm 15300*2500*4700mm |
| Min.Glass | 500*500mm | Glass thickness | 5-30mm |
| Speed of Spindle | 0-12000rpm | Spindle power | 7.5KW*2 |
| Total power | 22KW | Tool positions | 6*2 |
| Tool Coner | BT30 | No. of Axis | 5axis |
| Air compression | 0.7Mpa |
|
|
| Weight | 5000KG |
|
|
. Main electric and pneumatic part
| General Construction Components (Standard) | ||
| Main body | Structural welding steel, welding with Co2 gas shield; heat processing | 1 set |
| Control System | Japan Mistubishi control system, the major electronic parts are taking world well-know brand, such as Schneider | 1 set |
| Electro-Spindle | Professional and specialized for glass grinding Made in China,0-12000r.p.m 7.5KW*2 | 2 pcs |
| Software | LEasy CAD/CAM | 1 set |
| Tool Holder | BT30 | 12 pcs |
| Broaching Nut | ISO30 | 12 pcs |
| Servo Motor | Japan Mistubishi (Japan) | 5 pcs |
| Transducer | Japan Mistubishi (Japan) | 2 pcs |
| Water Pump | Made in Taiwan | 1 pcs |
| Central Lubricating System | Made in China | |
| Slide Way | Hiwin (Taiwan) | |
| Ball Screw | TBI (Taiwan) | |
| Proximity Switch | Balluff (Germany) | |
| Water Tank | Stainless steel | 1pcs |
| Unloading Tools Device |
| 1 set |
| Solid Cutting Fluid |
| 2kg |
| Tool Box |
| 1 set |
| Spindle Tool | Tool used to repaire spindle | |
| Tool Store | 6*2 Automatic tool changing with total 12 positions | |

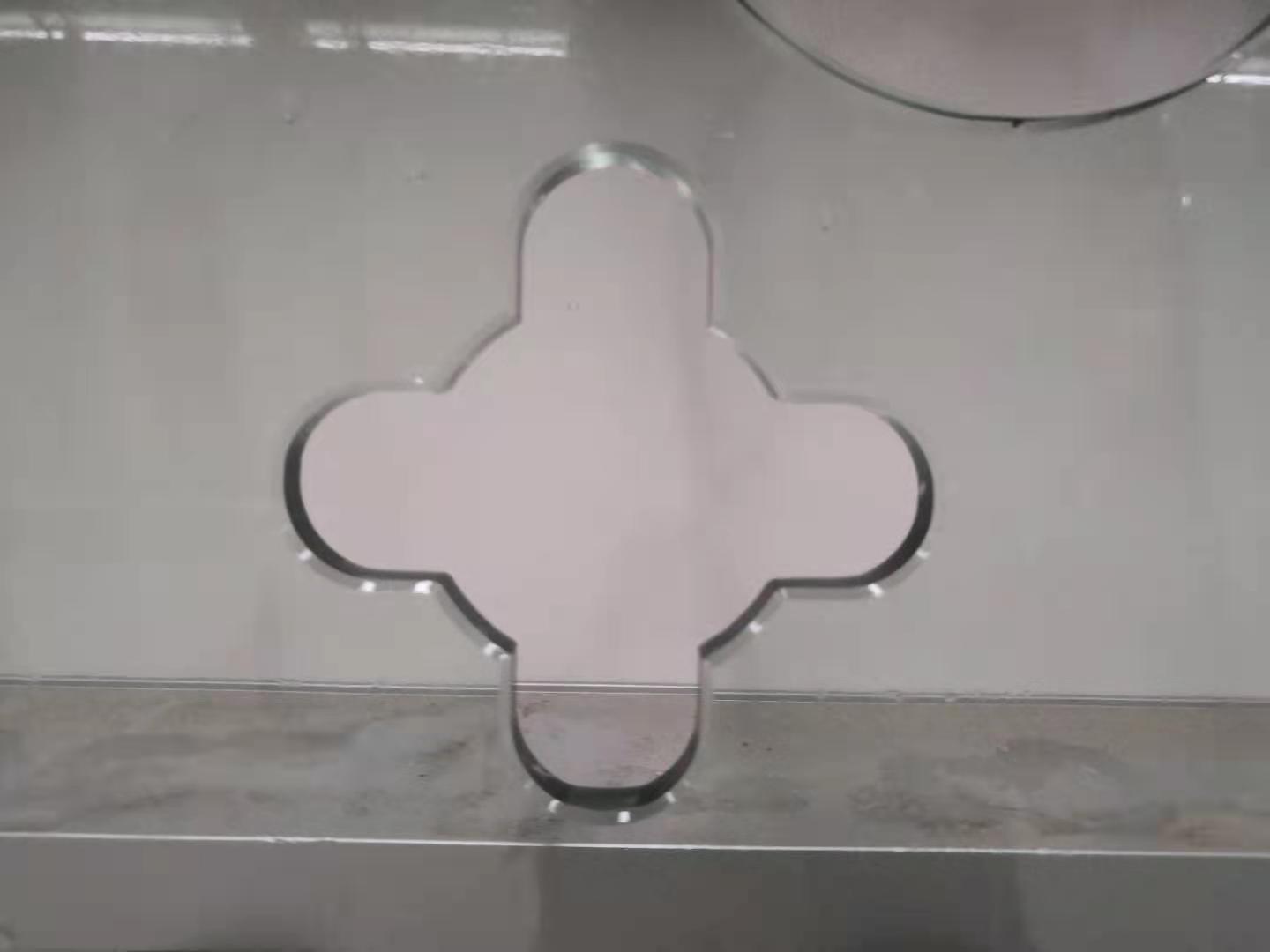

the produced photo by Vertical Glass Drilling and Milling Machine
